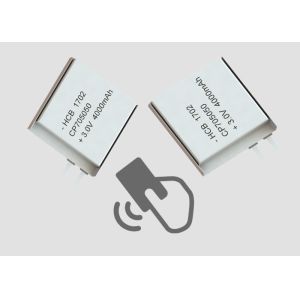

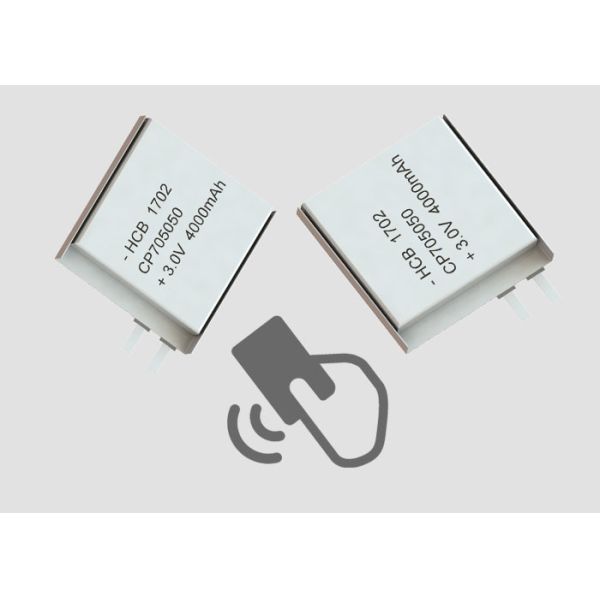

Self Discharge 4000mAh CP705050 Lithium Pouch Cell

Brand Name : HCB

Model Number : CP705050

Certification : UN/CE/UL/RoHS

Place of Origin : China

MOQ : 1K pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram, D/A, L/C

Supply Ability : two million unit per month

Delivery Time : 5-35 working days

Packaging Details : Special design for Air/Sea/Courier transportation

Self-Discharge : ≤1%

Operating Temperature : -40℃ ~ +70℃

Model : CP705050

Max Size(mm) : 7.2×50×51

All-up weight : 32g

Nominal Capacity : 4000mAh

Maximum Continuous Current : 1500mA

Maximum Pulse Discharge Current : 3000mA

Contact Now

Customizable 4000mAh Pouch Cell Lithium MnO2 Battery CP705050 For Gas Meter NB-IoT Meter And Sensors

Nominal Capacity	4000mAh
Battery discharged at continuous current 5mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage	3.0 V
Maximum Continuous Current	1500mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current	3000mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition	Temperature ≤ 30℃ Humidity ≤ 75%RH
Operating Temperature	-40℃ to +60℃

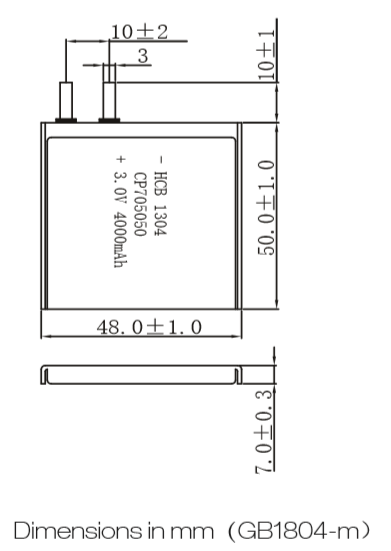

Battery Dimension	See drawing on pag
Max Weight	32.0g
Self-discharge Rate	1%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life	10 years
Ambient temperature 23±2℃

1. Battery Characteristic

High Voltage

The nominal voltage of single cell up to 3.0V

High Energy Density

We provide the specific energy density up to 375Wh/kg, 50% higher than the steel-shelled lithium cell of the same weight

Wide Operating Temperature Range

Battery working temperature range from -40℃ to +60℃

Long Shelf Life

The battery self-discharge less than 2% per year at room temperature

2. Main Applications

Telecommunications

Wireless telecommunication devices

Medical devices

Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.

Tracking

RFID products, road toll transponder, IC cards, etc.
